Sound Event Detection

Temporal sound event annotation with strong labels following DCASE Challenge protocols.

Get This Design

This design is available in our showcase. Copy the configuration below to get started.

Quick start:

bash
# Create your project folder
mkdir sound-event-detection
cd sound-event-detection
# Save config.yaml from this page into this folder
potato start config.yaml

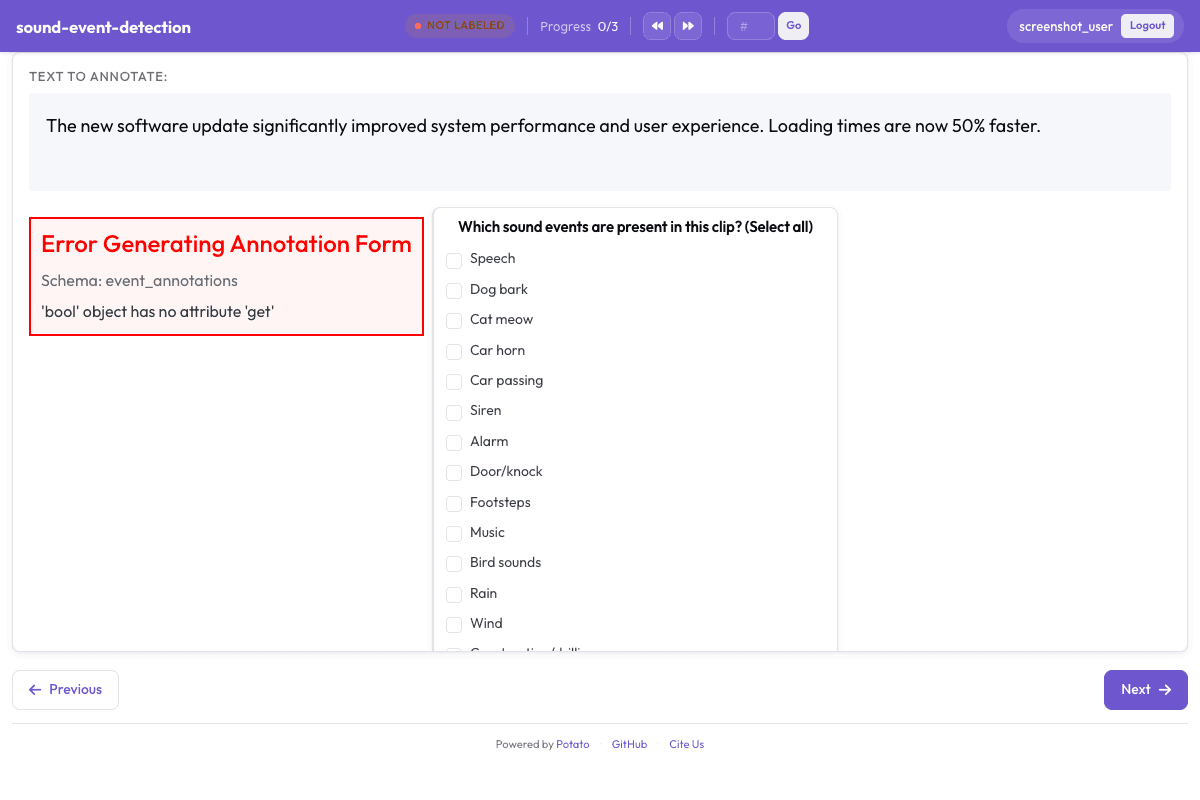

Sound Event Detection annotation interface preview

Configuration File

yaml
annotation_task_name: "Sound Event Detection"
task_dir: "."

port: 8000

# Data configuration
data_files:
  - "data/audio_recordings.json"

item_properties:
  id_key: "id"
  text_key: "text"
instance_display:
  fields:
    - key: audio_url
      type: audio
      label: "Recording"
    - key: text
      type: text
      label: "Notes"

# Annotation schemes
annotation_schemes:
  # Event annotations (temporal spans)
  # Format: describe events with timestamps
  - annotation_type: text
    name: event_annotations
    description: "List all sound events with start/end times. Format: 'start-end: event_class'"
    multiline: true
    placeholder: "0.0-2.5: dog_bark\n3.1-4.0: car_horn\n2.0-5.5: speech\n..."

  # Events detected (for quick summary)
  - annotation_type: multiselect
    name: events_present
    description: "Which sound events are present in this clip? (Select all)"
    labels:
      - Speech
      - Dog bark
      - Cat meow
      - Car horn
      - Car passing
      - Siren
      - Alarm
      - Door/knock
      - Footsteps
      - Music
      - Bird sounds
      - Rain
      - Wind
      - Construction/drilling
      - Glass breaking
      - Gunshot
      - Scream
      - Baby cry
      - Applause
      - Laughter

  # Number of distinct events
  - annotation_type: radio
    name: event_count
    description: "How many distinct sound events did you annotate?"
    labels:
      - "0 (silence/background only)"
      - "1-2 events"
      - "3-5 events"
      - "6-10 events"
      - "More than 10 events"

  # Event overlap
  - annotation_type: radio
    name: event_overlap
    description: "Are there overlapping sound events?"
    labels:
      - No overlap (events are sequential)
      - Some overlap
      - Heavy overlap (many simultaneous sounds)

  # Annotation difficulty
  - annotation_type: likert
    name: difficulty
    description: "How difficult was it to determine event boundaries?"
    size: 5
    min_label: "Very easy (clear boundaries)"
    max_label: "Very difficult (ambiguous)"

  # Background noise level
  - annotation_type: likert
    name: noise_level
    description: "How much background noise is present?"
    size: 5
    min_label: "Silent/clean"
    max_label: "Very noisy"

  # Confidence
  - annotation_type: likert
    name: confidence
    description: "Confidence in your temporal boundaries"
    size: 5
    min_label: "Low"
    max_label: "High"

# User settings
require_password: false

# Output
output_annotation_dir: "annotation_output/"
export_annotation_format: "jsonl"

Sample Data

json
[
  {
    "id": "sound_event_detection_1",
    "audio_url": "https://upload.wikimedia.org/wikipedia/commons/7/7c/Door_knocker_audio.ogg",
    "text": "Knocking at a door"
  },
  {
    "id": "sound_event_detection_2",
    "audio_url": "https://upload.wikimedia.org/wikipedia/commons/0/0a/Typing_-_Model_M_1986.ogg",
    "text": "Typing on a mechanical keyboard"
  }
]

// ... and 3 more items

Details

Annotation Types

spanmultiselect

Domain

Audio

Use Cases

sound event detectiontemporal annotationacoustic monitoring

Tags

audioevent detectiontemporaldcasesegmentation
